- Bluetooth enabled for data transfer
- Hard Case Model
- 3-Pole and 2-Pole Earth Resistance measurement (0.01 to 2000Ω)
- Waterproof design (IP67)

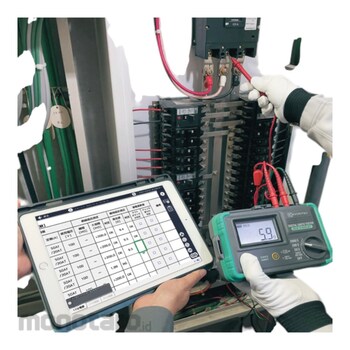

- Built-in Bluetooth® enables data transfer
- Noise rejection up to 25V rms allows accurate testing in noisy environments
- Rotary Switch makes the user interface very intuitive
- Large LCD Display with Backlight
- LED to monitor correct / non correct auxiliary earth spike resistance
- Earth Voltage Measurement (AC/DC 0 to 300V)
- CAT IV 100V
KYORITSU Digital Earth Tester
#Grup produk P113396700
Kondisi Barang:
Authorized Partner
Spesifikasi
| Accessories | 7127B (Simplified measurement probe), 7266 (Earth resistance test leads [red 20m, yellow 10m, green 5m/1set]), 8041 (Auxiliary earth spikes [2spikes/1set]), 9121 (Shoulder strap), 9197 (Hard case), LR6(AA) × 6, Instruction manual |
|---|---|
| Accuracy | ±1.5%rdg±0.08 Ω, ±1.5%rdg±4dgt |
| Applicable Standards | IEC 61010-1 CAT IV 100V / CAT III 150V / CAT II 300V Pollution degree 3, IEC 61010-2-030, IEC 61010-031, IEC 61557-1, 5, IEC 60529 (IP67), IEC 61326-1, 2-2 |
| Auxiliary Earth Resistance (ohm) | <10k, <50k, <100k |
| Communication Interface | Bluetooth®5.0 |
| Comparator Reference Value (ohm) | 10, 100, 500 |
| Dimensions (LxWxD) (mm) | 121x188x59 |
| Display Range (ohm) | 0.00 to 20.99, 0.0 to 209.9, 0 to 2099 |
| Earth Resistance Measurement Range (ohm) | 20, 200, 2000 |
| Earth Voltage Accuracy | ±1%rdg±4dgt |
| Earth Voltage Display Range | 0.0 to 314.9 V, 0.0 to ±314.9 V |
| Earth Voltage Measuring Range | 0 to 300 V AC (45 to 65Hz), ±0 to ±300 V DC |
| Power Source | LR6(AA)(1.5V) × 6 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
1. Measurement Method- Measurement of the earth electrode resistance (3-Pole method)
The international standard IEC 60364-6 provides information regarding the measurement of the resistance of an earth electrode for TT, TN and IT systems.
This measurement shall be made by the Volt-Amperometric method using two auxiliary earth electrodes.
The instrument that covers this requirement is the Earth Tester.
2. Various features
- Dust and Waterproof
After use you can wash it to remove the mud and dust.
- Strong noise rejection
Noise rejection up to 25V rms allows accurate testing in noisy environments.
- Earth voltage warning
A red LED comes on if an external voltage is detected.
Frequency - Voltage
0 to 10Hz - >10V
10 to 100Hz - >25V
100 to 400Hz - >5V
- Robust steel made earth spikes
Earth measurements are possible up to 100kΩ* of auxiliary earth spikes resistance.
*20Ω range 10kΩ, 200Ω range 50kΩ, 2000Ω range 100kΩ.
- Auxiliary earth resistance check
4105DLBT-H checks if the auxiliary earth resistance is:
- Large LCD Display with Backlight
3. Useful Accessories and Options for measurement
- Robust forged earth spikes (MODEL 8041)
Robust forged earth spikes.
- Cable reel for Earth resistance tester (MODEL 7267/7268)
Innovative Cable reel with wire guide system to facilitate rewinding.
- Adapter for measurement terminal (MODEL 8259)
Adapter to enable use of other test leads.
