- Permits a wide range of insulation testing up to 100GΩ at variable test voltage from 1 to 10kV
- DC voltage output for recorders
- Output voltage is shown on the digital display
- After tests, automatically discharges the charges stored in the circuit under test
- Operates with Ni-MH rechargeable batteries

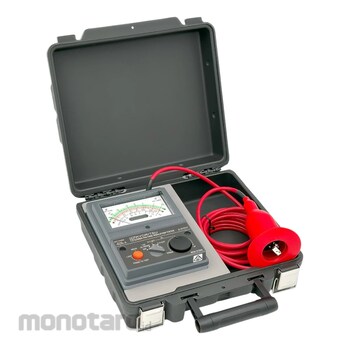

KYORITSU Analog High Voltage Insulation Tester
#Grup produk P113396667
Kondisi Barang:
Authorized Partner
Spesifikasi
| Dimensions (LxWxD) (mm) | 200x140x80 |
|---|---|
| Measurement Accuracy (ohm) | 0.05 to 50G, 1 to 100M, ±10% rdg |
| Measuring Range (ohm) | 1.6/100G (Auto-ranging), 100M |
| Open Circuit Voltage | ±2%, ±10% |
| Other Ranges Accuracy | ±1% of scale length*1, ±1% of scale length |
| Output Voltage And Set | DC 0 to 10kV ±2%rdg±2dgt |
| Power Source | Ni-MH (1.2V) ×8 / External supply DC 15V |
| Test Voltage (V) | 1 to 10k, 1000 |
