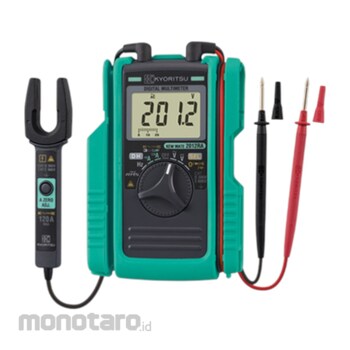

Digital Multimeter with AC/DC Clamp Sensor
- Capable of measuring AC and DC currents with OPEN CLAMP SENSOR 120A
- Cable strength increased with robust cable protection
- Test probe can be fixed to the holster
- Can measure AC/DC current and voltage
- Pocket size and heavy duty design
- Test lead cap to protect from short circuit accident
- The open jaws are thin, perfect to clamp wires even in tight space
KYORITSU Digital Multimeter with AC/DC Clamp Sensor
#Grup produk P113396649
Kondisi Barang:
Authorized Partner
Spesifikasi
| AC Voltage (V) | 6.000/60.00/600.0; (Input impedance: Approx. 10MΩ); ±1.5%rdg±5dgt (45 to 400Hz) |
|---|---|
| Accessories | R03 (AAA) × 2, Instruction manual |
| Applicable Standards | IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2, Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 613 |
| Capacitance | 400.0nF/4.000/40.00µF, ±2.5%rdg±10dgt |
| Conductor Size (mm) | Ø12 (Max.) |
| Continuity Buzzer (ohm) | 35±25 (Buzzer Sounds Below) |
| DC Current (A) | 60.00/120.0 , ±2.0%rdg±8dgt (60), ±2.0%rdg±5dgt (120) |
| Dimensions (LxWxD) (mm) | 128x92x27 |
| Diode Test | 2.000V, ±3.0%rdg±5dgt |
| Frequency AC A (Hz) | 99.99/400.0, ±0.2%rdg±2dgt (100), ±0.1%rdg±1dgt (400) |
| Frequency AC V (Hz) | 99.99/999.9/9.999/99.99/300.0k, 999/99.99/300.0k , ±0.1%rdg±1dgt (1000/10/100/300.0k), (Input sensitivity Current) |
| Open Circuit Voltage (V) | 2.7 |
| Power Source | R03 (AAA)(1.5V) × 2 , * Continuous measuring time |
| Resistance (ohm) | 600.0/6.000/60.00/600.0k/6.000/60.00M, ±1.0%rdg±5dgt (600/6/60/600k), ±2.0%rdg±5dgt (6M), ±3.0%rdg±5dgt (60M) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- New cable rubber protection- Application examples:
Test probe can be fixced to the holster
DC measurement in solar panels
Measuring current in a Switchboard
Servicing a car
