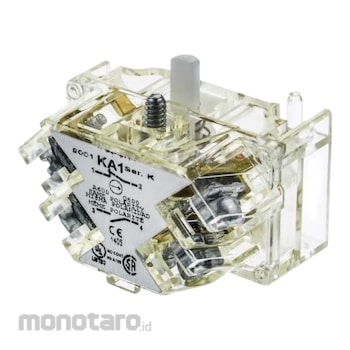

Schneider Electric Contact Block for Industrial Machinery
#Grup produk P113372223
Kondisi Barang:
Authorized Partner
Spesifikasi
| Connections - Terminals | Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1 |
|---|---|
| Contacts Material | Silver alloy contacts |
| Device Short Name | 9001K |
| Product or Component Type | Contact block |
| Shape of Screw Head | Cross slotted |
| Tightening Torque | 7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600-Q600 NEMA | 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| [Ith] Conventional Free Air Thermal Current (A) | 10 |
| [Ui] Rated Insulation Voltage (V) | 250, 3)IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage (kV) | 2.5 IEC 60947-1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This Harmony 9001K, contact block uses screw-clamp terminals and has 1 x NO + 1 x NC contacts. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on 9001K complete push button units and selector switches and connects to control circuits with simple screw-clamp connections. Its clear color of cover allows users to identify it visually at a distance. It is compatible with Harmony 9001K push buttons and switches. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Feature
- Improved security thanks to finger-safe contact blocks and light modules - Robustness to withstand the harshest environments
- Easy, secure mounting system
- Automatic self-grounding operators without additional wiring
- A large metal set of accessories to customize your product
