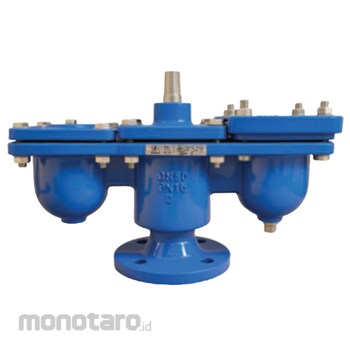

Fivalco Double Orifice Air Valve
#Grup produk P113371996
Sebelum PPN:
Rp2.299.900 - Rp8.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ball Seal Orifice Material | EPDM |
|---|---|
| Body Material | Ductile Iron |
| Bolt & Nut Material | Steel |
| Cap Material | Ductile Iron |
| Disc Seat Ring Material | EPDM |
| Float Ball Material | ABS Plastic |
| Orifice Cover Material | Ductile Iron |
| Orifice Gasket Material | EPDM |
| Screw Material | ABS Plastic |
| Seat Test Pressure (x1.1) (bar) | 17.6 |
| Shell Test Pressure (x1.5) (bar) | 24 |
| Suitable Media | Water |
| Working Pressure (Bar) | 16 |
| Working Temperature (°C) | -10 to 100 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
- Comply with BS EN 1074-4- Large venting capacity
- Capable to withstand hydrostatic pressure of 24 bar without any sign of leakage
- Flange drilled to BS 4504 PN 16 / EN 1092-2 PN 16 / ANSI Class 150 (Specify on order)
