The YY series has a wide variety of types, from general type with lead wire to protective tube type.
In addition, we offer three types of connection, straight type, screw fixed type, and flange type.

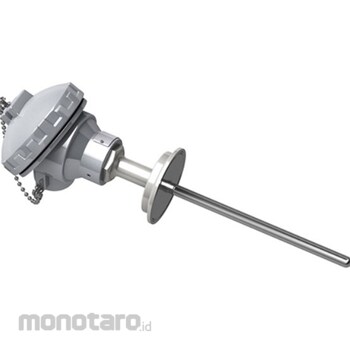

Azbil (Yamatake) Sensor
#Grup produk P113371394
Spesifikasi
| Connection size | 1.5S (ferrule cap size) |
|---|---|
| Material | ASTM316L (sheath, equivalent to SUS316L), SUS316L (ferrule cap) |
| Mounting | Veil cap single element |
| Sheath Length (mm) | 100 |
| Standard | JIS C 1604 |
| Terminal Box | Aluminum die-cast |
| Type | Sanitary specifications (buff # 400 finish, oil-free and water-free treatment) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification●Option 2: None●Sensor type: Pt100Ω●Inspection results office Class A/JCSS calibration certificate included●Sheath pressure resistance (Mpa): 1●Temperature measurement range (°C): -40 to 250●Wiring method: 3-wire type●Specified current (mA): 1●Certification: Oil-free and water-free treatment certificate + material certificate included●Protective tube outer diameter (ΦD): 6.4
Ulasan Produk
Tidak ada ulasan
