Azbil (Yamatake) Regular-Use Compact Limit Switch
#Grup produk P113371330
Sebelum PPN:
Rp1.199.900 - Rp2.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Operation Frequency | 120 times/min or less |
|---|---|
| Conformed Standard | NECA C 4508/JIS C 8201-5-1,IEC 60947-5-1 |
| Contact Material | Silver Rivets |
| Contact Type | 2 circuits |
| Insulation Resistance (MΩ) | 100 or more (DC500V insulation resistance tester) |
| Operating Humidity Range | 98% RH or less |
| Operating Temperature Range (°C) | -10 to 70 (however, if it does not freeze) |
| Protection Class | IP67(IEC60529,JIS C 0920) |
| Rated Frequency (Hz) | 45~65 and dc |
| Rated Impulse Withstand Voltage (kV) | Between terminals of the same polarity: 0.25, Between each terminal and earth: 0.25 |
| Rated Insulation Voltage (V) | AC125/250 |
| Rated Working Voltage | 120/240V AC,30V DC |
| Short Circuit Protection Device | TUV Fuse F10A (IEC60127)/CQC Silver Contact Fast Acting Fuse: 15A |
| Terminal Shape | M4 screw (binding screw with toothed washer), DIN 4-pin connector (M12 size), pre-wire |
| Type | Basic type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

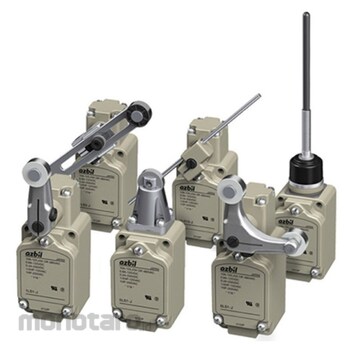

UL/CSA/CE/CCC marked product. Built-in 2-circuit double-break basic type switch in a robust aluminum die-cast case. Oil-, water-, and dust-proof construction. (Protection class IP67) With operating position setting display. (Roller lever type/Roller plunger type)
Feature
SpecificationSwitching overvoltage: Category III (IEC 60204-1)
