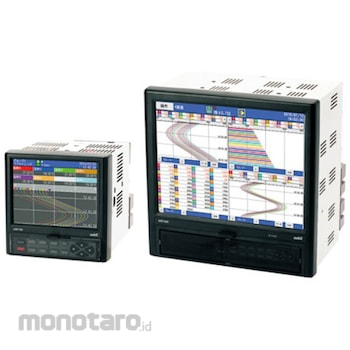

The paperless recorder ARF200 uses a 12.1-inch TFT color liquid crystal display with excellent visibility, and is a network-compatible recorder that offers both high functionality and operability.
Achieves 100ms / 48 points and an accuracy of ± 0.1%, and measurement data can be saved in the internal memory, CF (compact flash) card, and USB memory.
In addition, with Ethernet support, it is possible to monitor from a computer on the network on the WEB browser screen.
In addition, you can transfer data files via FTP or make reports using e-mail.
Azbil (Yamatake) Kirokukei
#Grup produk P113370331
Spesifikasi
| Alarm Function | Number of settings Up to 4 settings per point Alarm type Upper limit, lower limit, difference upper limit, difference lower limit, abnormal data ON delay Delay time setting range 1 to 3600 s Alarm output AND/OR setting possible |
|---|---|
| Mass (kg) | About 7.2 |
| Maximum current consumption (A) | 65VA |
| Operating Environment | Ambient temperature / humidity range: 0 to 50 ° C 20 to 80% RH, power supply voltage: 90 to 264V AC, power supply frequency: 50 / 60Hz ± 2%, posture: left / right forward tilt 0 ° backward tilt 0-20 °, warm-up time : 30 minutes or more |
| Rated power supply voltage | 100 to 240V AC 50/60Hz |
| Type of Terminal Fitting | Panel mounting |
