It has excellent durability against the heat of direct sunlight outdoors and significant changes in temperature.
UL / CSA / GB standard certified product.
Multi-storey car park, ski lift, aerial work platform

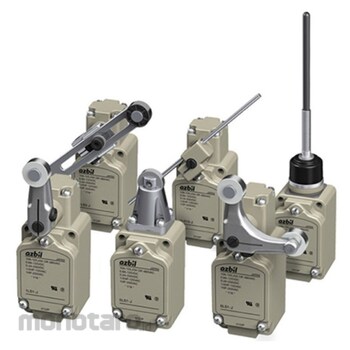

Azbil (Yamatake) Environment-Friendly Outdoor Regular-use Limit Switch
#Grup produk P113369830
Sebelum PPN:
Rp1.799.900 - Rp1.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Operating Speed | (Highest) 0.5m / s, (lowest) 1.7mm / s |
|---|---|
| Allowable Operation Frequency | 60 times / min or less |
| Conformed Standard | NECA C 4508/JIS C 8201-5-1 |
| Contact Type | 2 circuits |
| Electrical life (rated load) | 500,000 times or more (when switching frequency is 20 times / min) |
| Insulation Resistance (MΩ) | 100 or more (DC500 insulation resistance meter) |
| Mechanical life | 10 million times or more |
| Operating Humidity Range | 98% RH or less |
| Operating Temperature Range (°C) | -10 to +70 (no freezing) |
| Protection Class | IP67(IEC60529,JIS C 0920) |
| Rated Working Voltage | 125 VDC / 250 VDC / 100/125 VAC / 240/250 VAC / 300 VAC or more |
| Shock Resistance (m/s²) | 300 (contact opening is 1 ms or less (NECA C 4508)) |
| Terminal Shape | M4 screw (switch terminal screw) |
| Type | Outdoor environment resistant type |
| Vibration Resistance | Double amplitude 1.5mm, frequency 10-55Hz, continuous 2 hours (NECA C 4508) |
| Withstand Voltage | (Between terminals of the same polarity) 1000 VAC 50/60 Hz 1 min (Each terminal and non-current-carrying metal part) 2000 VAC 50/60 Hz 1 min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Ulasan Produk
