Double digital display (displays the amount of light and the set value at the same time)
Equipped with functions pursuing ease of use (automatic sensitivity switching function, threshold tracking function)

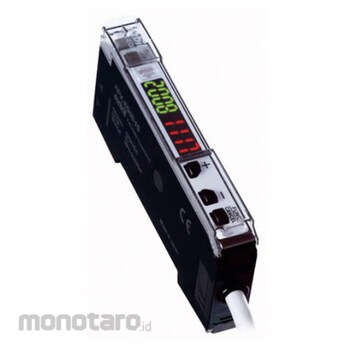

Azbil (Yamatake) Digital fiber sensor HPX-EG series
#Grup produk P113369575
Spesifikasi
| Ambient Illumination to Use (Lx) | Incandescent lamp: 5,000 or less / Sunlight: 20,000 or less |
|---|---|
| Cable Length (m) | 2 |
| Current Consumption | 750mW or less (power supply voltage 24V, current consumption 30mA) |
| Emitting Element | Red four-element LED (635nm) |
| Operation Mode | NPN open collector |
| Power Supply Voltage | DC12 ~ 24V + 10% /-15% (ripple 10% pp or less) |
| Protection circuit | Short-circuit protection for power supply / Prevention of malfunction at power-on (approx. 300 ms) / Protection for incorrect power connection |
| Response Time | 250μs(Fast)/500μs(Semi Fast)/1ms(Normal) |
| Type | Standard cable drawer type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationSlave unit / up to 15 units can be connected, mutual interference prevention / 2 units
Ulasan Produk
Tidak ada ulasan
