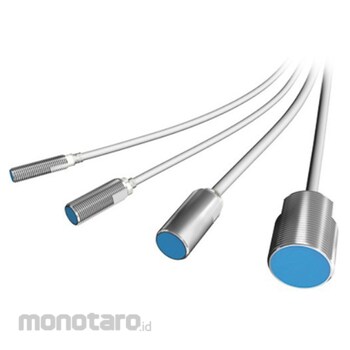

Azbil (Yamatake) DC 2-Wire Cylinder Type Proximity Switches
#Grup produk P113369496
Sebelum PPN:
Rp2.599.900 - Rp5.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Control Output | (Switching current) 3 to 100mA or less, (residual voltage) 3V or less (switching current 100mA, when cord length is 2m), (output withstand voltage) DC30V |
|---|---|
| Detection Method | High frequency oscillation type |
| Head Shape | screw |
| Insulation Resistance (MΩ) | 50 or more (DC500V) |
| Leakage Current (mA) | 0.55 or less |
| Operating Temperature Range (°C) | -25 to 70 |
| Operating Voltage Range (V) | DC10 to 30 |
| Power Supply Voltage (V) | DC 12/24 |
| Protection Class | IP67 (IEC standard), IP67g (JEM standard) |
| Protection circuit | Surge absorption, load short-circuit protection, reverse connection protection |
| Type of Connection | Pre-wired connector |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationSpatter resistant, connector pin assignment: +1/-4
