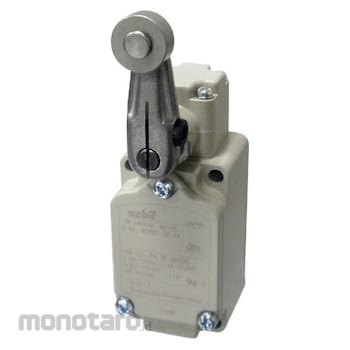

Azbil (Yamatake) Corrosion Resistant Regular-use Compact Limit Switch
#Grup produk P113369450
Sebelum PPN:
Rp1.999.900 - Rp2.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Operating Speed | (Highest) 0.5m / s, (lowest) 1.7mm / s |
|---|---|
| Allowable Operation Frequency | 120 times/min or less |
| Conformed Standard | NECA C 4508/JIS C 8201-5-1,IEC 60947-5-1 |
| Contact Type | 2 circuits |
| Insulation Resistance (MΩ) | 100 or more (DC500 insulation resistance meter) |
| Operating Humidity Range | 98% RH or less |
| Operating Temperature Range (°C) | -10 to +70 (no freezing) |
| Pollution Degree (Environment to Use) | Pollution degree 3 (EN60947-5-1) |
| Protection Class | IP67(IEC60529,JIS C 0920) |
| Rated Frequency (Hz) | 45~65 and dc |
| Rated Working Voltage | 120/240V AC,30V DC |
| Terminal Shape | M4 screw (binding screw with toothed washer), DIN 4-pin connector (M12 size), pre-wire |
| Type | Corrosion resistant type |
| Vibration Resistance | Double amplitude 1.5mm, frequency 10-55Hz, continuous 2 hours (NECA C 4508) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
UL/CSA/CE/CCC marked product. A two-circuit double break basic switch is built into a robust aluminum die-cast case. Oil-resistant, water-resistant and dust-proof. (Protection class IP67) With operating position setting display. (Roller lever type, roller plunger type)
