Achieves a machine life of 20 million times or more. (Adopts original 2-spring structure)
High precision. (MD = 0.1mm maximum)
High sealability, oil resistance / immersion resistance (JIS), IP67 (IEC)
Uses O-ring seal and integrally molded diaphragm seal.
Compact, space-saving, and continuous close contact mounting is possible.

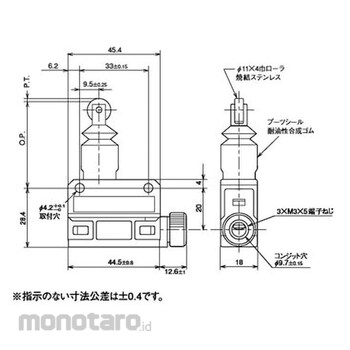

Azbil (Yamatake) Compact Standard / Horizontal Type Limit Switch
#Grup produk P113369399
Spesifikasi
| Allowable Operation Frequency | 120 times/min or less |
|---|---|
| Conformed Standard | NECA C 4508/JIS C 8201-5-1,IEC 60947-5-1 |
| Contact Type | C (single pole double throw SPDT) |
| Electrical life (rated load) | 2 million operations or more (125 VAC-1 A) <br> 300,000 operations or more (250V AC-5A, 48V DC-2A, 30V DC-5A) |
| Insulation Resistance (MΩ) | (Between homopolar terminals) 100 or more (between each terminal and non-charged metal part) 100 or more |
| Operating Humidity Range | 98% RH or less |
| Operating Temperature Range (°C) | -10 to +70 (no freezing) |
| Pollution Degree (Environment to Use) | Pollution degree 3 (EN60947-5-1) |
| Protection Class | IP67(IEC60529,JIS C 0920) |
| Rated Frequency (Hz) | 45~65 and dc |
| Rated Voltage (V) | AC125,250,DC8,14,30,115,230 |
| Shock Resistance (m/s²) | 300 (contact opening is 1 ms or less (NECA C 4508)) |
| Terminal Shape | M3 binding head machine screw with serrated washer |
| Vibration Resistance | 1.5mm double amplitude, 2 hours continuous (NECA C 4508) |
| Withstand Voltage | (Between contacts) AC1000V 50/60Hz 1 min Leakage current 1mA |
