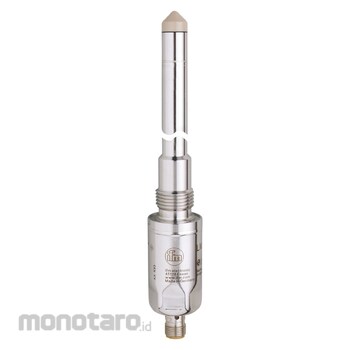

IFM Electronic Capacitive Level Sensor LMT Series
#Grup produk P113246885
Spesifikasi
| Special Features | Gold plated contacts |
|---|---|
| Cannot be Used for | See operating instructions, chapter \"Functions and features\". |
| Connector | 1 x M12; coding: A; Contacts: gold plated |
| Current Consumption (mA) | Less than 50 |
| Material | Stainless steel (1.4404 / 316L); stainless steel (1.4571 / 316Ti); PEEK; PEI; FKM |
| Media | Fluid |
| Oil Media Temperature (°C) | -25 to 100; (aplikasi yang tunduk pada German Federal Water Act 0 to 100) |
| Oil Media Temperature at Short Time (°C) | -25 to 150; (1 h; aplikasi yang tunduk pada German Federal Water Act: 0 to 100) |
| Operating Voltage (V) | 18 to 30 DC |
| Output Signal | Switching signal; IO-Link |
| Probe Length (mm) | 253 |
| Protection Class | III |
| Recommended Media | water; water-based media; oil; oil-based media |
| SDCI Standards | IEC 61131-9 |
| Transmission Type | COM2 (38.4 kBaud) |
| Water Media Temperature (°C) | -25 to 85; (applications subject to the German Federal Water Act: 0 to 85) |
| Water Media Temperature at Short Time (°C) | -25 to 150; (1 h; applications subject to the German Federal Water Act: 0 to 100) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- For reliable level control in tanks and containers- Hygienic design For food and beverage industry requirements
- Can be used on liquid and viscous media as well as bulk materials
- media differentiation by parameterization of switching output
- reliable deposit or foam suppression
- Tank Pressure : -1 to 40; (applications subject to the German Federal Water Act: -0.5 to 10 bar) bar, -0.1 to 4; (applications subject to the German Federal Water Act: -0.5 to 10 bar) MPa
