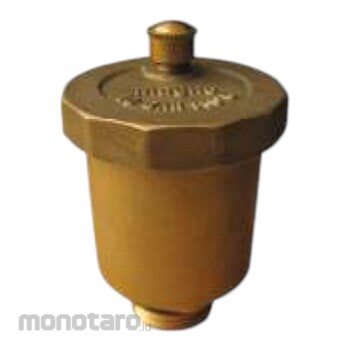

The MA-131 Air Vent is a reliable automatic venting device and is suitable for venting of air or gas from heating systems or heat process installations.
Range of Application
Hot water heating systems, radiators, wall and ceiling-mounted air heaters, air collection vessels, pipework circuits, boiler and air separators. Not suitable for mineral oil or liquids with mineral-oil-based.
Design
The automatic air vent comprises:
Housing
Lid
Float
Valve seat seals
Function
Inside the automatic air vent there is a float which operates a lever according to the water level. When there is no water in the housing, then the float opens the valve. Air can therefore be vented from the heating system during filling. When the heating system has been filled, the inflowing water closes the valve and the vent is shut off. Water usually contains oxygen which bubbles off during operation of the system and collects at the highest point. The automatic air vent must therefore be fitted at the air collection position (highest point on a boiler or pipework circuit).
Magno Air Vent MA 131
#Grup produk P113206027
Spesifikasi
| Material | Brass housing, Brass lid, High grade heat-resistant synthetic material float, Heat-resistant elastomer seal components |
|---|---|
| Operating Pressure (bar) | Max. 10 |
| Operating Pressure (psi) | 145 |
| Operating Temperature (°C) | Max. 110 |
| Operating Temperature (°F) | Max. 230 |
