A highly sensitive mat switch with a thin structure and few steps during installation. It can also be installed under the carpet.
Human detection (conduction between leads when stepped on). Good as an indoor mat switch.
*This product is an A contact switch. It cannot be used as a B contact. *Please do not use the switch if it is submerged in water as it is not completely waterproof. *Do not apply local impact with sharp objects. Failure to do so may result in malfunction. *Please store the product in a flat state. There is a risk of incorrect operation due to the quirks. *Make sure that water does not get on the end of the lead wire. *Please do not bend the product.

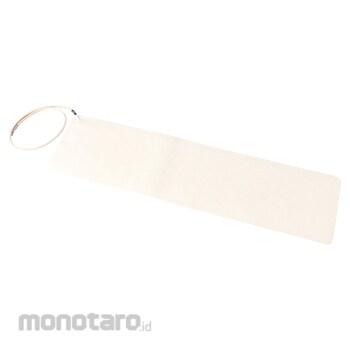

monotaro Mat switch
#Grup produk P113205763
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Sebelum PPN:
Rp1.399.900 - Rp2.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Load | 2000N (Φ40 plane static load / 1 minute) |
|---|---|
| Color | Light gray |
| Material | PVC (skin) |
| Maximum Allowable Contact Current (A) | 100mA |
| Maximum Allowable Contact Voltage (V) | 30 |
| Operating Force | Approx.40N (Pressing surface Φ40 plane) /Approx.150N (Pressing surface Φ80 plane) |
| Operating Temperature Range (°C) | 10 to 40°C |
| Resistance | ON resistance: 10Ω or less / OFF insulation resistance: 10MΩ or more |
| Waterproof | Sealed drip-proof structure (not submerged) |
