SKF Seal Hidrolik Rod Simetris dengan Energizer
#Grup produk P113182073
Spesifikasi
| Alternative Tolerance Class for Rod Diameter | h9 |
|---|---|
| Chamfer Dimension C (mm) | 6 |
| Color | Blue |
| Design | PTB |
| Extrusion Gap at 160bar (mm) | 0.45 |
| Extrusion Gap at 250bar (mm) | 0.25 |
| Extrusion Gap at 400bar (mm) | 0.1 |
| Housing Groove Diameter D (mm) | 50 |
| Housing Groove Width L (mm) | 8 |
| Lead-in Chamfer Length C (mm) | 6 |
| Lower Limit Deviation tol D (mm) | 0 |
| Lower Limit Deviation tol-d (mm) | -0.064 |
| Maximum Pressure Limit (N/mm²) | 40 |
| Maximum Speed (m/s) | 1 |
| Rod Diameter D (mm) | 40 |
| Tolerance Class for Housing Groove Diameter | H10 |
| Tolerance Class for Rod Diameter | f8 |
| Upper Limit Deviation tol D (mm) | 0.1 |
| Upper Limit Deviation tol L (mm) | 0.2 |
| Upper Limit Deviation tol-d (mm) | -0.025 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

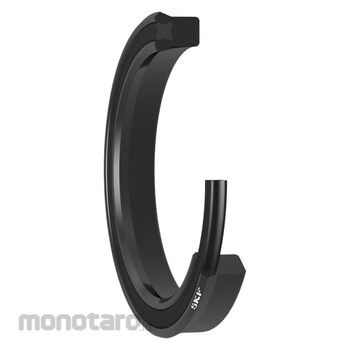

These hydraulic rod seals consist of a LUBRITHANE thermoplastic polyurethane seal, with a bevel-style lip design, and an integrated nitrile rubber X-ring energizer that provides additional sealing force and improves long-term sealing performance
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
- Suitable for seal housings according to ISO 5597 - Provide good performance even at low operating pressures and temperatures
- Accommodate pressures up to 400 bar (5 800 psi)
- Suitable for medium duty applications
