KHK (KHK Gears) SSG Ground Spur Gear Module 2.5
#Grup produk P113180756
Spesifikasi
| Allowable Torque (Nm [kgfm]) | Bending strength: 11.7 Tooth surface strength: 6.44 |
|---|---|
| Backlash (mm) | 0.12 to 0.22 |

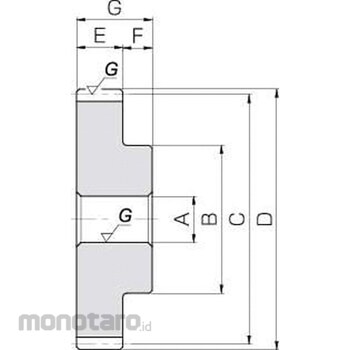

| Hole Diameter A (Φmm) | 20 |
| Hub Diameter (Φmm) | 56 |
| Hub Length F (mm) | 18 |
| Mass (kg) | 0.94 |
| Material | S45C |
| Module | 2.5 |
| Number of Teeth | 27 |
| Overall Length G (mm) | 43 |
| Shape | S1 |
| Standard Circle Diameter C (Φmm) | 67.5 |
| Surface Treatment | Black dyeing other than teeth |
| Tooth Width E (mm) | 25 |
| Type | Spur gear |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
-Additional machining is possible and can be selected according to the design intent.
