KHK (KHK Gears) SSG Ground Spur Gear Module 1.5
#Grup produk P113180738
Spesifikasi
| Allowable Torque (Nm [kgfm]) | Bending strength: 6.4 Tooth surface strength: 6.11 |
|---|---|
| Backlash (mm) | 0.10 to 0.18 |

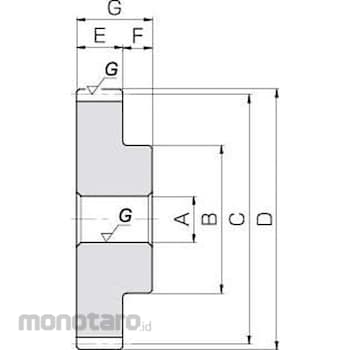

| Hole Diameter A (Φmm) | 18 |
| Hub Diameter (Φmm) | 60 |
| Hub Length F (mm) | 14 |
| Mass (kg) | 0.91 |
| Material | S45C |
| Module | 1.5 |
| Number of Teeth | 56 |
| Overall Length G (mm) | 29 |
| Shape | S1 |
| Standard Circle Diameter C (Φmm) | 84 |
| Surface Treatment | Black dyeing other than teeth |
| Tooth Width E (mm) | 15 |
| Type | Spur gear |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
-Additional machining is possible and can be selected according to the design intent.
