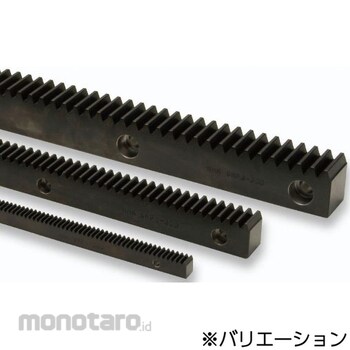

KHK (KHK Gears) SRFK Mounting Hole Processing Rack Module 0.8 J Series (Completed Product Type)
#Grup produk P113180358
Spesifikasi
| Accuracy class | KHK R 001 Grade 4 (equivalent) |
|---|---|
| Dimension E (mm) | 5.5 |
| Dimension F (mm) | 14.54 |
| Dimension G (mm) | 90 |
| Gear Cutting Reference Plane | Bottom |
| Gear Surface Treatment | Cutting |
| Height (C) (mm) | 12.3 |
| Material | S45C |
| Module | 0.8 |
| Number of Holes | 4 |
| Number of Teeth | 119 |
| Overall Length A (mm) | 299.08 |
| Pitch Height D (mm) | 11.5 |
| Pressure Angle (°) | 20 |
| Screw Used | M4 |
| Shape | RA |
| Surface Treatment | Black dyed |
| Tooth Surface Hardness | 95HRB or less |
| Tooth Type | Normal teeth |
| Tooth Width (mm) | 8 |
| Tooth width b (mm) | 8 |
| Type | Mounting hole processing rack |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
* The additional engineering department is not re-black dyed.
