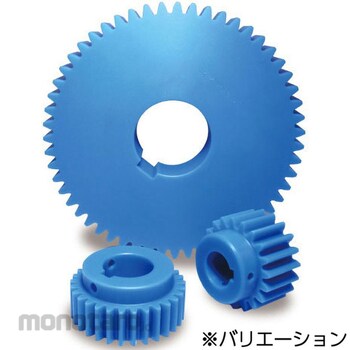

KHK (KHK Gears) PS Plastic Spur Gear Module 2.5 J Series (Completed Type)
#Grup produk P113120718
Sebelum PPN:
Rp2.099.900 - Rp2.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy class | JIS B 1702-1 N9 class |
|---|---|
| Backlash (mm) | 0.48 |
| Gear Cutting Reference Plane | Hole |
| Gear Surface Treatment | Cutting |
| Heat treatment | None |
| Hole Diameter A (Φmm) | 17 |
| Keyway Depth | 2.3 |
| Keyway Width (mm) | 5 |
| Material | MC901 |
| Module | 2.5 |
| Pressure Angle (°) | 20 |
| Shape | S5K |
| Tooth Surface Hardness | (115 to 120HRR) |
| Tooth Type | Normal teeth |
| Tooth Width E (mm) | 25 |
| Type | Spur gear |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
KHK's original shaft hole finished product with standardized hole diameter, keyway, and mounting hole dimensions.
