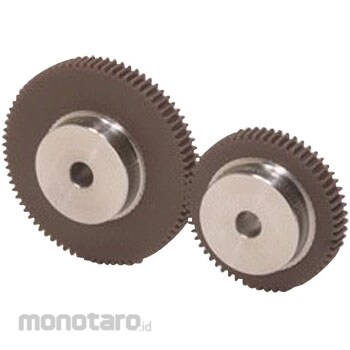

KHK (KHK Gears) NSU Fusion Spur Gear J Series Module 3
#Grup produk P113120417
Spesifikasi
| Accuracy class | JIS B 1702-1 N9 class |
|---|---|
| Allowable Torque (N m) | 72.7 |
| Dimension A (mm) | 35 |
| Dimension B (mm) | 70 |
| Dimension C (mm) | 168 |
| Dimension D (mm) | 174 |
| Dimension E (mm) | 30 |
| Dimension F (mm) | 17 |
| Dimension G (mm) | 47 |
| Dimension H (mm) | 130 |
| Dimension J (mm) | 8.5 |
| Hole Diameter | 35 |
| Hole Diameter (mm) | 35 |
| Mass (kg) | 3.59 |
| Material | MC602ST (Boss part S45C) |
| Module | 3 |
| Number of Teeth | 56 |
| Shaft Hole Diameter (mm) | 35 |
| Tooth Surface Hardness | 115 to 120HRR |
| Tooth Type | Normal teeth |
| Tooth Width (mm) | 30 |
| Type | Spur gear |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
KHK's original shaft hole finished product with standardized hole diameter, keyway, and mounting hole dimensions.
