-It has excellent strength and wear resistance, and a more compact design is possible.
-Since it is a high-precision finished product that has been carburized and hardened entirely, no additional machining is possible.
KHK (KHK Gears) MSGA/MSGB Toothed Spur Gear Module 4
#Grup produk P113120392

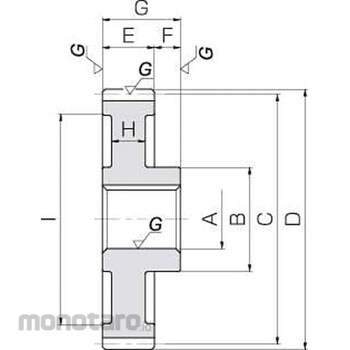

Spesifikasi
| Allowable Torque (Nm [kgfm]) | Bending strength: 285 Tooth surface strength: 372 |
|---|---|
| Backlash (mm) | 0.16 to 0.26 |
| Hole Diameter A (Φmm) | 50 |
| Hub Diameter (Φmm) | 85 |
| Hub Length F (mm) | 20 |
| Mass (kg) | 8.37 |
| Material | SCM415 |
| Module | 4 |
| Number of Teeth | 50 |
| Overall Length G (mm) | 60 |
| Shape | S2 |
| Standard Circle Diameter C (Φmm) | 200 |
| Tooth Width E (mm) | 40 |
| Type | Spur gear |
| Web Thickness H (mm) | 26 |
