-It has excellent strength and wear resistance, and a more compact design is possible.
-Since it is a high-precision finished product that has been carburized and hardened entirely, no additional machining is possible.
KHK (KHK Gears) MSGA/MSGB Toothed Spur Gear Module 3
#Grup produk P113120374
Spesifikasi

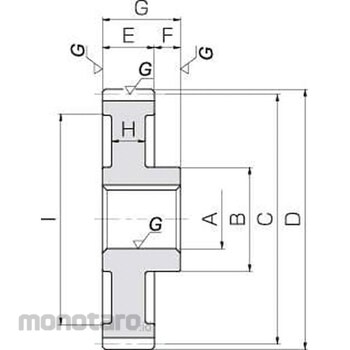

| Allowable Torque (Nm [kgfm]) | Bending strength: 150 Tooth surface strength: 224 |
|---|---|
| Backlash (mm) | 0.14 to 0.24 |
| Hole Diameter A (Φmm) | 35 |
| Hub Diameter (Φmm) | 80 |
| Hub Length F (mm) | 15 |
| Mass (kg) | 5.31 |
| Material | SCM415 |
| Module | 3 |
| Number of Teeth | 60 |
| Overall Length G (mm) | 45 |
| Shape | S2 |
| Standard Circle Diameter C (Φmm) | 180 |
| Tooth Width E (mm) | 30 |
| Type | Spur gear |
| Web Thickness H (mm) | 20 |
