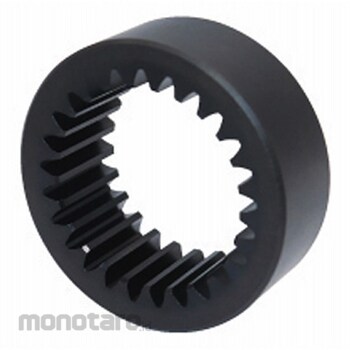

KHK (KHK Gears) Gear Coupling
#Grup produk P113119396
Spesifikasi
| Backlash (mm) | 0.40 to 0.60 |
|---|---|
| Mass (kg) | 2.96 |
| Module (m) | 2.5 |
| Number of Teeth | 42 |
| Outer Diameter D (Φmm) | 145 |
| Shape | T1 |
| Standard Circle Diameter C (Φmm) | 105 |
| Tooth Width E (mm) | 48 |
| Type | Outer cylinder |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- Easy to install and remove. - The external gear (inner cylinder) is crowned so that it can be used even if there is some misalignment between the shaft centers up to 5°, so no excessive power transmission is performed. - The tooth surface is hardened, so it is very durable. In addition, the surface is unichrome plated. - The finished type with keyways, screw holes, and finished holes can be used as is. We also offer products with pilot holes that users can freely machine.
