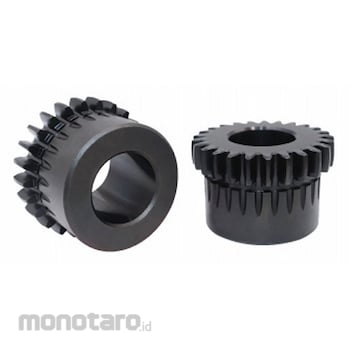

KHK (KHK Gears) Gear Coupling
#Grup produk P113119378
Spesifikasi
| Backlash (mm) | 0.40 to 0.60 |
|---|---|
| Boss Length (mm) | F:45 |
| Cutting Edge Length (mm) | C-shaped retaining ring groove K: 42, L: 3.2, M: 86.5 |
| Hole Diameter (mm) | AH8:20 |
| Hub Diameter (Φmm) | 90 |
| Mass (kg) | 3.43 |
| Module (m) | 2.5 |
| Number of Teeth | 42 |
| Overall Length (mm) | Assembly N: 135 |
| Overall Length G (mm) | 65 |
| Shape | T2 |
| Standard Circle Diameter C (Φmm) | 105 |
| Tooth Width E (mm) | 20 |
| Type | Inner cylinder |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- Easy to install and remove. - The external gear (inner cylinder) is crowned so that it can be used even if there is some misalignment between the shaft centers up to a maximum of 5°, so no excessive power transmission is performed. - The tooth surface is hardened, so it is highly durable. In addition, the surface is trivalent chromate plated. - The finished type with key grooves, screw holes, and finished holes can be used as is. We also offer products with pilot holes that users can freely machine.
