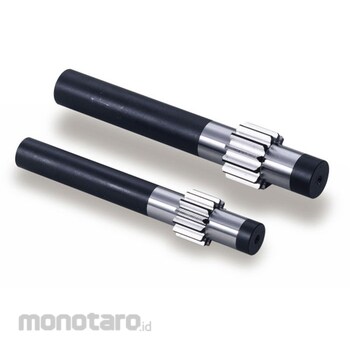

KHK (KHK Gears) CP Spur Gear
#Grup produk P113119095
Spesifikasi
| Allowable Torque (Nm [kgfm]) | Bending strength: 12.4 Tooth surface durability: 2.64 |
|---|---|
| Backlash (mm) | 0.05 to 0.21 |
| Cell Spacing (mm) | CP10 |
| Mass (kg) | 0.97 |
| Material | S45C |
| Module (m) | 3.1831 |
| Number of Teeth | 10 |
| Overall Length G (mm) | 220 |
| Shaft Length (mm) | (Right) F: 150 (Left) F: 40 |
| Shaft diameter | (Right) A: 25.2 (Left) A: 25.2 |
| Shape | S7 |
| Standard Circle Diameter C (Φmm) | 31.83 |
| Tooth Width E (mm) | 30 |
| Travel Distance (mm) | One rotation of the pinion: 100 |
| Type | Spur gear |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- By additionally machining the shaft section of a shaft-mounted ground tooth spur gear, it can be set directly onto the bearing.
