KHK (KHK Gears) CG Worm Wheel Module 3
#Grup produk P113118838
Spesifikasi
| Allowable Torque (N m) | (Tooth surface strength) (at 30rpm) 169 (at 100rpm) 141 (at 300rpm) 114 96.7 (at 900rpm) 86.3 (at 1200rpm)- |
|---|---|
| Backlash (mm) | 0.15 to 0.33 |
| Helix Angle | 3°55' |

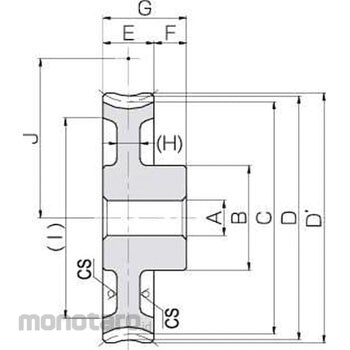

| Hole Diameter A (Φmm) | 20(H7) |
| Hub Diameter (Φmm) | 70 |
| Hub Length F (mm) | 15 |
| Mass (kg) | 3.4 |
| Material | FC200 |
| Module | 3 |
| Number of Opponents | 1 |
| Number of Teeth | 60 |
| Overall Length G (mm) | 45 |
| Reduction Ratio | 60 |
| Shape | HB |
| Spiral Angle | Left direction |
| Standard Circle Diameter C (Φmm) | 180.42 |
| Tooth Width E (mm) | 30 |
| Type | Worm wheel |
| Web Thickness H (mm) | 9 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A low-priced and versatile worm gear that is widely used.
