KHK (KHK Gears) AG Worm Wheel Module 3
#Grup produk P113118397
Spesifikasi
| Allowable Torque (N m) | (Tooth surface strength) (at 30rpm) 129 (at 100rpm) 103 (at 300rpm) 77.1 62.4 (at 900rpm) 53.8 (at 1200rpm) 48.7 (at 1800rpm) 40.6 |
|---|---|
| Backlash (mm) | 0.16 to 0.29 |
| Helix Angle | 7°46' |

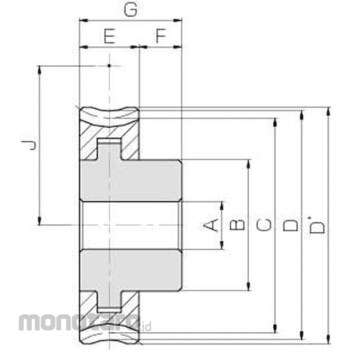

| Hole Diameter A (Φmm) | 20(H7) |
| Hub Diameter (Φmm) | 55 |
| Hub Length F (mm) | 18 |
| Mass (kg) | 1.46 |
| Material | CAC702(AlBC2) |
| Module | 3 |
| Number of Opponents | 2 |
| Number of Teeth | 30 |
| Overall Length G (mm) | 43 |
| Reduction Ratio | 15 |
| Shape | H4 |
| Spiral Angle | Right direction |
| Standard Circle Diameter C (Φmm) | 90 |
| Tooth Width E (mm) | 25 |
| Type | Worm wheel |
| Web Thickness H (mm) | 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
There is no need to attach the worm to the shaft, and it can be set directly on the bearing by additionally machining the shaft.
