Tubes and pipes with an outer diameter of 1 to 4 mm can be connected to polypropylene small diameter caps, and tubes and pipes with an outer diameter of 5 to 8 mm can be connected to polyacetal (POM) large diameter caps.
With 3 small diameter O-rings (1 small and 2 large) inside the small diameter cap. One large diameter O-ring is attached to the large diameter cap.
The hole diameter in the connector body is 1.5 mm for the small diameter connector and 4.7 mm for the large diameter connector.
The unnecessary mouth can be easily closed with a PTFE cone without a hole in the center by removing the O-ring (sold separately).
The connection withstand voltage is usually 340kPa.
Connection method: Type 1 or Type 2.

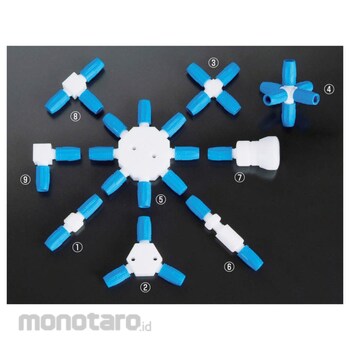

SANSYO Standard connector
#Grup produk P113112278
Sebelum PPN:
Rp1.199.900 - Rp3.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Tubes and pipes with an outer diameter of 1 to 4 mm can be connected to polypropylene small diameter caps, and tubes and pipes with an outer diameter of 5 to 8 mm can be connected to polyacetal (POM) large diameter caps.With 3 small diameter O-rings (1 small and 2 large) inside the small diameter cap. One large diameter O-ring is attached to the large diameter cap.
The hole diameter in the connector body is 1.5 mm for the small diameter connector and 4.7 mm for the large diameter connector.
The unnecessary mouth can be easily closed with a PTFE cone without a hole in the center by removing the O-ring (sold separately).
The connection withstand voltage is usually 340kPa.
Connection method: Type 1 or Type 2.
