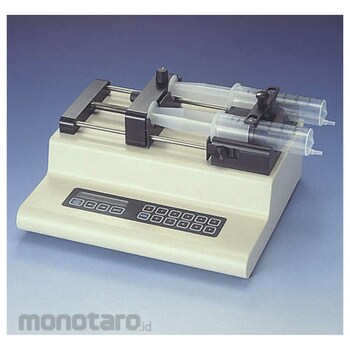

SANSYO Micro syringe pump

Equipped with a microprocessor at the heart, flow stability and reproducibility are greatly improved. .. 90 types of typical syringes (Terumo, Nipro, Hamilton, etc.) are stored in memory, so just select the syringe. You can also directly enter the inner diameter of the syringe. .. Monitor the accumulated amount on the display during operation. The flow rate can be changed on the way. .. When the power is turned on with the memory function, the last used setting value starts up. .. Computer connection and TTL input / output control are possible with the RS232C interface.

Specification
Minimum flow rate: 0.001 μl / hour (when using a 10 μl syringe), maximum flow rate: 21 mL / min (when using a 10 mL syringe), 71 mL / min (when using a 60 mL syringe), 147 mL / min (when using a 140 mL syringe), maximum number of steps : 1600 x 1/2 steps per second, minimum number of steps: 1 x 1/16 steps per 120 seconds, driving force (horizontal direction): 18 kg
