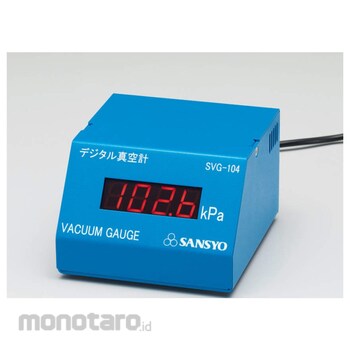

A compact vacuum gauge with a semiconductor pressure sensor.
Simple digital LED display screen. You can check the numerical value at a glance.
It has a measurement range and resolution equal to or higher than that of a U-shaped vacuum gauge using mercury, making it an ideal alternative. In addition, it is more affordable than conventional digital vacuum gauges.
Corrosion resistant type is also compatible with corrosive gas (excluding gas that erodes SUS316L and SUS304).
Recorder output is standard equipment. You can measure while collecting data on your computer (dedicated software sold separately).
If you use the USB port (USB micro-B type plug) on the back, you can also use a commercially available mobile power supply (recommended mobile power supply standard: output DC15V 1A, capacity 2500mAh).
SANSYO Digital vacuum gauge
#Grup produk P113087538
Spesifikasi
| Communication Output | USB2.0(Micro USB-B) |
|---|---|
| Display Cycle | 100ms |
| Display Resolution | 0.1kPa |
| Material | Pressure sensing element: Silicon, Pressure port: BS |
| Measuring Accuracy (%) | ±0.3FS±1digit |
| Measuring Range (kPa) | 0.1to101.3 |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 90 x 100 x 60 (excluding protrusions) |
| Output | Recorder: 0 to 1VDC output at 0 to 100kPa |
| Pressure Port | Φ11mm hose nipple (Rc1 / 4 when removed) |
| Temperature Characteristics | ±0.1%FS/°C |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
A compact vacuum gauge with a semiconductor pressure sensor.Simple digital LED display screen. You can check the numerical value at a glance.
It has a measurement range and resolution equal to or higher than that of a U-shaped vacuum gauge using mercury, making it an ideal alternative. In addition, it is more affordable than conventional digital vacuum gauges.
Corrosion resistant type is also compatible with corrosive gas (excluding gas that erodes SUS316L and SUS304).
Recorder output is standard equipment. You can measure while collecting data on your computer (dedicated software sold separately).
If you use the USB port (USB micro-B type plug) on the back, you can also use a commercially available mobile power supply (recommended mobile power supply standard: output DC15V 1A, capacity 2500mAh).
Specification
Measurement range pressure / overload resistance: absolute pressure / 0.3MPa
