ISIS POM Tubing Coupling Female LT1ASF2 Series

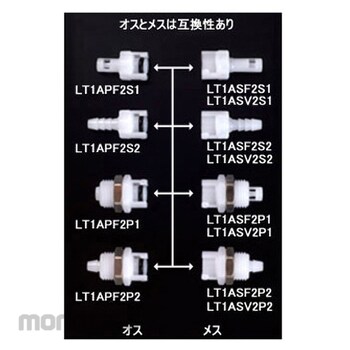

It consists of a 1/16 "(1.6mm) flow male and female coupling, and the female may or may not have a built-in spring valve to prevent liquid leakage in the tube line when the connection is separated. There are types. All males and females are compatible with each other with or without a valve, so you can freely combine them. Insert the male and female into the groove of the lock sleeve, and twist it a little to lock and fix it. The lock sleeve has a structure that can be turned freely so that the already connected tube will not be twisted (excluding the partition type). For soft tubes such as silicon and tiegon, silicon tube 2 x for terminal shape 1/16 " 3mm, 1/16 "x 1/8". Tygon tube 1/16 "x 1/8" can be connected. Silicon tube 3 x 5 mm, 4 x 6 mm, 1/8 "x 1/4" for terminal shape 1/8 ". Tygon tube 4 x 6 mm, 1/8" x 1/4 ", 5/32" x 7/32 "can be connected. Bulkhead screw standard 7 / 16-24UNF. Includes one lock nut for fixing to bulkheads with hole diameters of 11-12 mm and thicknesses up to 5 mm. Body, lock sleeve and built-in valve Is made of polyacetal (POM), O-ring is made of nitrile rubber (Buna-N), the valve spring built into the female is made of SUS316, and the lock nut attached to the partition type is made of electroless nickel-plated brass. Male and female It is not sold as a set, so be sure to purchase both.
