Basically for fluororesin tubes and PEEK tubes with outer diameters of 1/16" and 1/8", and is used in combination with a head nut and inverted cone for the connecting tube size, but in exceptional cases 1/8" Polypropylene (PP) head nuts for tubes are also compatible with tubes with outer diameters of 2.0, 2.5, and 3.0 mm.
There is no need to make a flange at the tip of the tube, just insert the tube into the separately sold ETFE inverted cone for the tube outside diameter, and connect it with a head nut to a flat bottom port with a 1/4-28 UNF female or M6 x 1 female thread. You can make an inactive connection with
Tube connection pressure resistance is generally 1.7MPa.

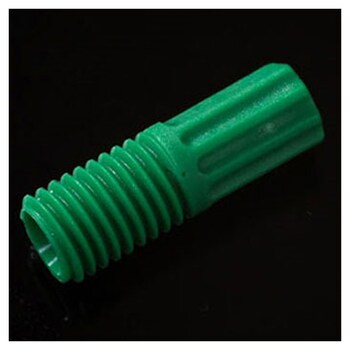

ISIS 1/8inch PP (1/4-28UNF male) 10 pieces
#Grup produk P113056635
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification●There are two types of head nuts: all made from PEEK and all made from polypropylene (PP), and there are four types of head shapes. - Head nut material (screw standard): Total length x screw length x head diameter (mm) PEEK head nut (1/4-28UNF male): 17 x 9 x 10 PEEK head nut short (1/4-28UNF male) ): 15 x 7 x 10 PEEK head nut small (1/4-28 UNF male): 17 x 9 x 7 PP head nut (1/4-28 UNF male and M6 x 1 male): 19 x 9 x 7.
