This type uses a new impeller and large cooling fan, and has a built-in high-performance silencer that can operate in all ranges up to shutoff.
Compatible with both 50/60Hz.
Current (A) (50/60Hz)
(Suction) 2.7/3.1
(Discharge) 3.0/3.5
Material (impeller)
ADC12
A5052P

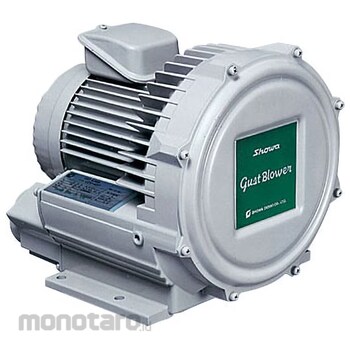

SDG Co., Ltd. Gust Blower Electric Blower Vortex Type High Pressure U2V Series
#Grup produk P113055946
Spesifikasi
| Bearing Number | Impeller side: 6205ZZWR, Anti-impeller side: 6204UU |
|---|---|
| Casing Material | ADC12 |
| Maximum Air Volume 50/60Hz (m³/minute) | (Suction/Discharge) 2.0/2.5 |
| Maximum Static Pressure (kPa)(50Hz/60Hz) | (Suction) 14.7 (Discharge) 16.7 / (Suction) 17.6 (Discharge) 19.6 |
| Noise Level (Db(A)) (50/60Hz) | 60/63 (at rated voltage and maximum airflow of 1.5m) |
| Output (kW) | (display)0.75 |
| RoHS Directive (10 substances) | Correspondence |
| Starting Current (A) (50/60Hz) | 20/18 |
| Structure (Impeller) | Whirlpool |
| TRUSCO Part Number | 238-7433 |
| Voltage (V) | Three phase 200 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Use
For suction (negative pressure): Office equipment, cleaning machines, degassing, packaging machines, automatic looms, industrial sewing machines, medical equipment, printing machines, powder transport, adsorption transport.For discharge (positive pressure): Septic tanks, cutting machines, cleaning, medical equipment, printing machines, powder transport, aquaculture, incinerators, automatic looms, drying, office equipment.
