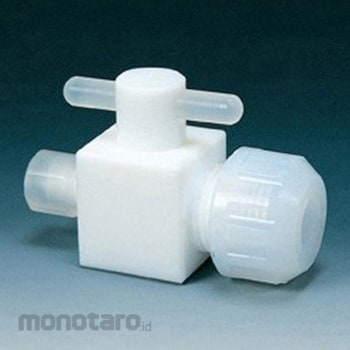

AS ONE Two-way valve, different diameter press-fit type Φ8×Φ10

Sebelum PPN:
Rp6.499.900
Spesifikasi
AS ONE Part Number67-4864-21

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
One is a large tube and the other is a small tube. The seal is an abacus type seal.
Feature
One is a large tube and the other is a small tube. The seal is an abacus type seal.

Specification
●Applicable outer diameter (Φ): 8-10●Size (mm): ●A1: 33●A2: 33, B: 34, C: 15●D1: 25.5●D2: 21, E: 28●F: 30●Orifice diameter (Φ): 5●Operating pressure: 0.3 MPa or less (gauge pressure) at 25°C●Material: Body/PTFE, Handle/PP, Cap nut/PF●Code number: 303-0002840
