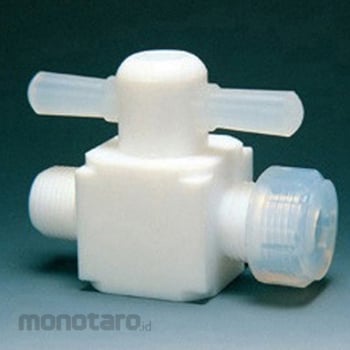

AS ONE Male two-way valve press-fit type Φ8×R1/4
#Grup produk P112990165
Spesifikasi
| AS ONE Part Number | 67-4862-60 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The male two-way valve press-in type has a tapered thread on the opposite side to the tube connection type. Use for various devices, containers, etc. The seal is an abacus type seal.
Feature
The male two-way valve press-in type has a tapered thread on the opposite side to the tube connection type. Use for various devices, containers, etc. The seal is an abacus type seal.Specification
●Applicable outer diameter (Φ): 8●Size (mm): ●A1: 32.5●A2: 27.5, B: 30.5, C: 12.5, D: 21●Connection thread: R1/4●Orifice diameter (Φ): 4●Operating pressure: 0.3 MPa or less (gauge pressure) at 25°C●Material: Body/PTFE, Handle●Code number: 303-0002671
