AS ONE Fluororesin two-way valve press-fit type with base Φ10
#Grup produk P112987240
Spesifikasi
| AS ONE Part Number | 67-4865-02 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

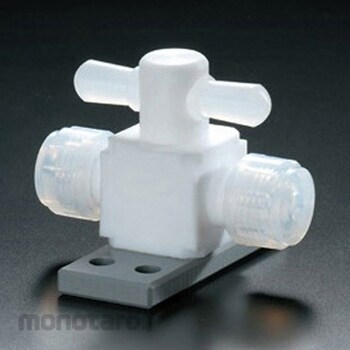

A stationary type with a PVC base attached to a two-way press-in valve. It can be directly attached to the operation panel. The seal is an abacus type seal.
Feature
A stationary type with a PVC base attached to a two-way press-in valve. It can be directly attached to the operation panel. The seal is an abacus type seal.Specification
●Applicable outer diameter (Φ): 10●Size (mm): ●A: 50●B: 70●C: 30●D: 15●Orifice diameter (Φ): 6●Operating pressure: 0.3 MPa or less (gauge pressure) at 26°C●Material: Body: PTFE, Handle: PP, Cap nut: PFA, Base: PVC●Code number: 303-0002936
