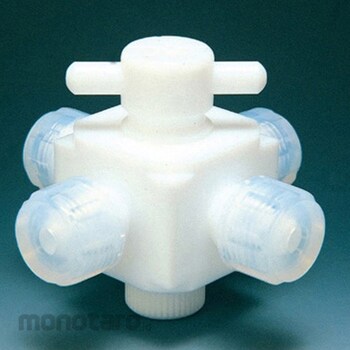

AS ONE Fluorine resin four-way valve, connection type Φ8
#Grup produk P112986700
Spesifikasi
| AS ONE Part Number | 67-4862-76 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Fluororesin four-way valve connections are used for tubes, stainless steel, glass tubes, etc. The connection is an abacus-type seal.
Feature
Fluororesin four-way valve connections are used for tubes, stainless steel, glass tubes, etc. The connection is an abacus-type seal.Specification
●Applicable outer diameter (Φ): 8●Size (mm): A: 34, B: 33, C: 28, D: 21●Orifice diameter (Φ): 4●Operating pressure: 0.2 MPa or less (gauge pressure) at 25°C●Material: Body and handle: PTFE, cap nut: PFA, O-ring: Fluorine rubber●Code number: 303-0002687
