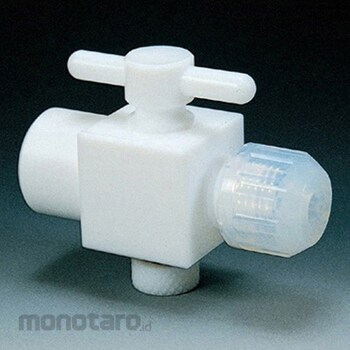

AS ONE B type for two-way valve device Φ12xRc3/8
#Grup produk P112982607
Spesifikasi
| AS ONE Part Number | 67-4864-98 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
One side is for tube connection, the other side is for female thread. The seal is an abacus type seal.
Feature
One side is for tube connection, the other side is for female thread. The seal is an abacus type seal.Specification
●Connection thread: Rc3/8●Applicable outer diameter (Φ): 12●Size (mm): ●A1: 37●A2: 28, B: 35, C: 26, D: 28●Orifice diameter (Φ): 6●Operating pressure: 0.2 MPa or less (gauge pressure) at 25°C●Material: Body and handle: PFFE, cap nut: PFA, O-ring: Fluorine rubber●Code number: 303-0002933
