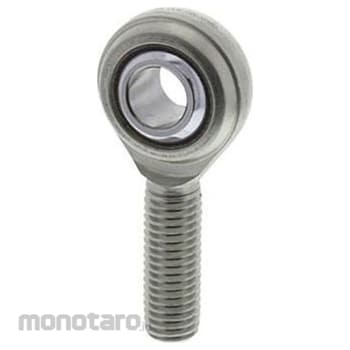

CCTY Bearing Japan Rod end (Oil-free male thread) Right-hand thread type
#Grup produk P112979807
Spesifikasi
| Dimension B (mm) | 8 |
|---|---|
| Dimension C (mm) | 6 |
| Dimension D (Φmm) | 5 |
| Dimension H (mm) | 33 |
| Dimension L4 (mm) | 42 |
| Dimension M (mm) | M5x0.8 |
| Dimension d1 (Φmm) | 7.7 |
| Dimension α (°) | 13 |
| Dimensions dk (mm) | 11.11 |
| Mass (g) | 17.5 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Type | Right-handed screw |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A spherical plain bearing that uses a spherical inner ring with the same accuracy and hardness as a steel ball for bearings, and is used for mounting the rod end of rocking motion.
