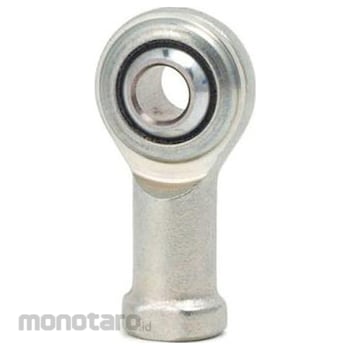

CCTY Bearing Japan Rod end (Oil-free female thread) Left-hand thread type
#Grup produk P112979782
Spesifikasi
| Dimension B (mm) | 16 |
|---|---|
| Dimension C (mm) | 12 |
| Dimension D (Φmm) | 12 |
| Dimension D3 (Φmm) | 22 |
| Dimension H (mm) | 50 |
| Dimension L2 (mm) | 6.5 |
| Dimension L4 (mm) | 66 |
| Dimension M (mm) | M12x1.75 |
| Dimension W (mm) | 19 |
| Dimension d1 (Φmm) | 15.4 |
| Dimension α (°) | 13 |
| Dimensions D2 (Φmm) | 17.5 |
| Dimensions dk (mm) | 22.23 |
| Mass (g) | 107.4 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Type | Left-hand thread |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A spherical plain bearing that uses a spherical inner ring with the same accuracy and hardness as a steel ball for bearings, and is used for mounting the rod end of rocking motion.
