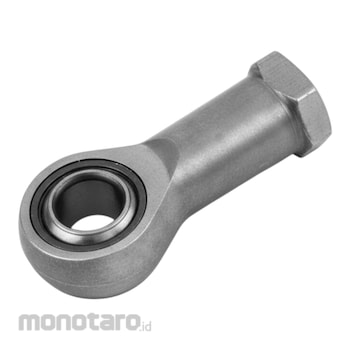

IKO Pillo-Ball Rod End PHSB Series
#Grup produk P112977827
Spesifikasi
| Ball Diameter (mm) | 9.525 |
|---|---|
| Boundary Dimension B (mm) | 5.56 |
| Boundary Dimension B1 (mm) | 6.32 |
| Boundary Dimension D2 (mm) | 8.74 |
| Boundary Dimension D₁ (mm) | 7.14 |
| Boundary Dimension L (mm) | 29.36 |
| Boundary Dimension L1 (mm) | 22.23 |
| Boundary Dimension L2 (mm) | 9.53 |
| Boundary Dimension W (mm) | 7.14 |
| Boundary Dimensions d (mm) | 14.27 |
| Boundary Dimensions l (mm) | 4.75 |
| Dimensions d (mm) | 3.967 |
| Dynamic Load Capacity Cd (N) | 2 600 |
| Identification Number | PHSB 2.5 |
| Static Load Capacity Cs (N) | 8 210 |
| Thread S Class 3B | -32UNC |
| rs min (mm) | 0.3 |
