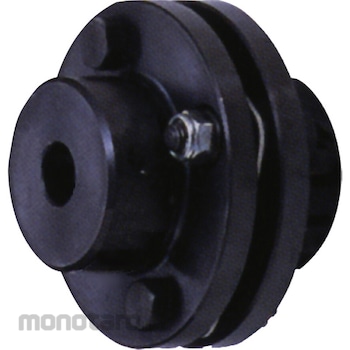

TSUBAKI (Tsubakimoto Chain) Ectoflex coupling NEF series (single type) NEF210S
#Grup produk P112955506
Spesifikasi
| Allowable Deviation Angle (°) | 1 |
|---|---|
| Allowable Torque (N m) | 2060 |
| Axial Misalignment (mm) | ±2.7 |
| Axial Spring Constant (N/mm) | 441 |
| Dimension B (mm) | 63.5 |
| Dimension E (mm) | 17 |
| Dimension H (mm) | 118 |
| Hub Type | Hub [1] Standard hub Hub [2] Standard hub |
| Mass (kg) | 11.7 |
| Model Number | NEF210S |
| Overall Length (mm) | 144 |
| P.C.D (mm) | 153 |
| Pilot Hole Diameter (Φmm) | Hub [1] 25 hub [2] 25 |
| Torsional Rigidity (N m/rad) | 22.5x10<sup>5</sup> |
| Type | Disc type |
