The shape of the bearing box is square and it is attached to the side wall of the machine with four bolts.
Due to the simple structure around the bearing and easy installation, it is the most widely used flange type.
* Since the bearing boxes of UCF201 to 204 are common, F204 is used for all.

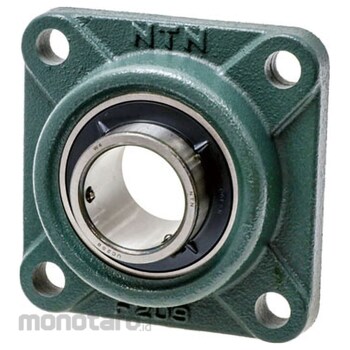

NTN Square flange unit without oil supply
#Grup produk P112948427
Kondisi Barang:
Authorized Partner
Spesifikasi
| Basic Dynamic Load Rating (kN) | 32.5 |
|---|---|
| Basic Static Load Rating (kN) | 20.4 |
| Cover | Without cover |
| Dimension A (mm) | 38 |
| Dimension A0 (mm) | 52.2 |
| Dimension A1 (mm) | 16 |
| Dimension B (mm) | 49.2 |
| Dimension L (mm) | 137 |
| Dimension N (mm) | 16 |
| Dimension S (mm) | 19 |
| Dimensions a2 (mm) | 22 |
| Dimensions j (mm) | 105 |
| Grease Nipple | No grease nipple |
| Load Rank | For light loads |
| Nominal Size of Mounting Bolt | M14 |
| Shaft hole type | Cylindrical hole type |
| Shape | Square flange unit |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
* Since the bearing boxes of UCF201 to 204 are common, F204 is used for all.Feature
The shape of the bearing box is square and it is attached to the side wall of the machine with four bolts.Due to the simple structure around the bearing and easy installation, it is the most widely used flange type.
