It is the most common format specified in JIS, ISO, and DIN, and is widely used internationally.
If the delivery destination is a private house (detached house / apartment house), the shop name is required. Please note that delivery may not be possible if there is no store name. * Depending on the delivery location, the delivery date may be postponed and additional shipping charges may be incurred. * Since it will be delivered by a large vehicle of 4 tons or more, we may ask the customer to pick up the luggage to the truck depending on the delivery location. * Delivery to places without parking space is not possible. * The driver will not assist in unloading.
NTN Plummer block split type SN30 standard type
#Grup produk P112947543
Kondisi Barang:
Authorized Partner
Spesifikasi

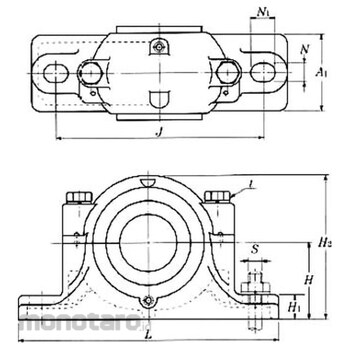

| Dimension A (mm) | 170 |
|---|---|
| Dimension A1 (mm) | 120 |
| Dimension D (mm) | 210 |
| Dimension H1 (mm) | 45 |
| Dimension H2 (mm) | 260 |
| Dimension L (mm) | 410 |
| Dimension N (mm) | 26 |
| Dimension N1 (mm) | 32 |
| Dimension S (mm) | M24 |
| Dimensions g (mm) | 63 |
| Dimensions h (mm) | 140 |
| Dimensions j (mm) | 350 |
| Dimensions t (mm) | M20 |
| Lubrication | Standard grease nipple and drain plug are attached |
| Mass (kg) | 25 |
| Nominal No. | SN3028, (rubber seal) ZF28 |
| Number | (Inner diameter of the receiving shaft) 28 |
| Shaft diameter d1 (Φmm) | 125 |
| Type | Tapered bore bearing application type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
If the delivery destination is a private house (detached house / apartment house), the shop name is required. Please note that delivery may not be possible if there is no store name. * Depending on the delivery location, the delivery date may be postponed and additional shipping charges may be incurred. * Since it will be delivered by a large vehicle of 4 tons or more, we may ask the customer to pick up the luggage to the truck depending on the delivery location. * Delivery to places without parking space is not possible. * The driver will not assist in unloading.Feature
It is the most common format specified in JIS, ISO, and DIN, and is widely used internationally.Ulasan Produk
