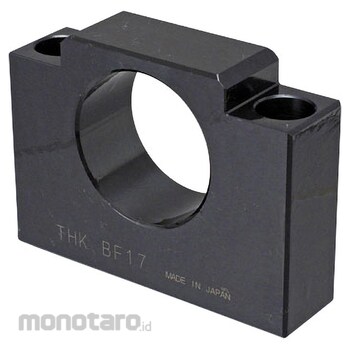

THK Ball screw support unit support side square (Φ8 to Φ40)

Considering the rigidity balance with the ball screw, a high rigidity and low torque angular bearing (contact angle 30 degrees, DF combination) is used.
It is a compact structure that takes into consideration the space around the installation. In addition, since the bearings with preload adjustment are incorporated, it is possible to assemble as it is, reducing the assembly man-hours and improving the assembly accuracy.
* The front mounting hole of the housing has been abolished to prevent foreign matter from entering (improving cleanliness) when wiping parts.
