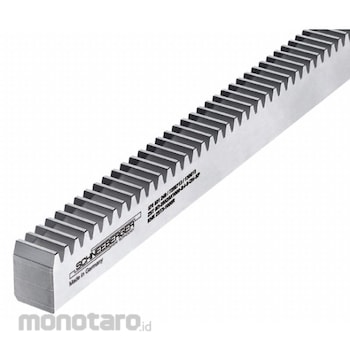

KHK (KHK Gears) ZST Schneeberger
#Grup produk P112792545
Spesifikasi
| Accuracy class | DIN3962, 3963, 3967 Q6 class |
|---|---|
| Dimensions (mm) | C chamfer amount CX: 2 |
| Gear Surface Treatment | grinding |
| Heat treatment | Tooth surface induction hardening |
| Helix Angle | 19°31′41″ |
| Mass (kg) | 8.26 |
| Material | DIN C45 |
| Module | Right angle of tooth: m2 (Front pitch: CP6.667) |
| Number of Teeth | 300 |
| Overall Length (mm) | A:2000,A':2008.52 |
| Pitch Height D (mm) | 22 |
| Pressure Angle (°) | 20 |
| Spiral Angle | R |
| Surface Treatment | None |
| Tooth Surface Hardness | 55to60HRC |
| Tooth Type | Normal teeth |
| Tooth width b (mm) | 24 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Alterations: possibleUlasan Produk
