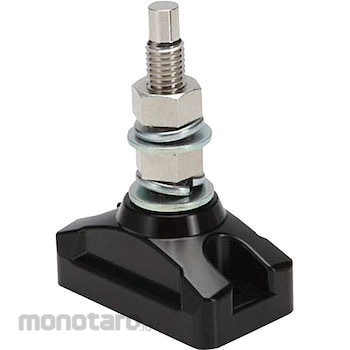

PATLITE (formerly Kasuga Electric) Stud terminal block TS-R series
#Grup produk P112788825
Spesifikasi
| Conformed Standard | JIS C2811 |
|---|---|
| Insulation Resistance (MΩ) | 100 or more (between live parts and between live parts and mounting metal plate) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Impulse Withstand Voltage (kV) | 6 |
| Rated Insulation Voltage (V) | 600 |
| Relative Humidity | 45to85% |
| Temperature rise | 45 ° C or less (temperature rise value of conductive metal fittings) |
| Terminal Connection | screw |
| Type of Sign | Direct attachment |
| Withstand Voltage (V/minute) | 2500 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This stud-type terminal block is ideal for relay terminals in high-current circuits. It is small and lightweight, requires little installation space, and can be connected from any direction. It is ideal for relay terminals in high-current circuits, test terminals, and bus bar (copper strip) supports. The base is molded from phenolic resin (UL94HB equivalent), making it extremely robust. A guide is provided at the tip of the bolt, making it easy to remove the nut. It complies with the RoHS directive.
