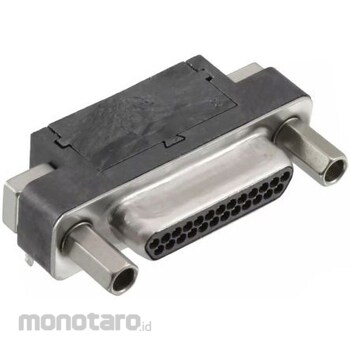

Molex Micro D-Sub connector

Specification Number of contacts: 25 ● Male/Female: Male ● Body orientation: Straight, vertical ● Mounting type: PCB mount ● Pitch: 1.27 mm ● Rated current: 1 A ● Housing material: Liquid crystal polymer ● Rated voltage: 600 V ac ● Length: 30.1mm ● Width: 15.26mm ● Depth: 7.8mm ● Dimensions: 30.1 x 15.26 x 7.8mm ● Operating Temperature Min: -40°C ● Molex Commercial Micro D-Sub Board Mount Connector. Molex Commercial Micro-D-Sub This is the next generation connector product. This Micro D board mount plug is four times as dense as standard D-Sub products. We provide the optimal space-saving solution for the demanding industrial data market. This rugged connector features a metal joint with a 1.27 mm centerline spacing and a grounding tab. Right angle and vertical options are available. Equipped with a jack post. Features and benefits. Saves board space. Robust and robust design High density (1.27 mm pitch) metal joints and ground tabs Wide operating temperature range: -40 → +125 °C. Applications. Medical industrial automation data/communication Commercial vehicle
